| Spec. | Description |
|---|---|
| Product Name: | SMD5050 60leds/meter RGBW(fuor chip) flexible led strip |
| Item No.: | TY-F100010-60xF50RGBW |
| PCB Size(mm): | 1000*12mm |
| LED Type: | SMD5050 |
| LED QTY(pcs): | 60leds/meter |
| IC Type: | / |
| IC QTY(pcs): | / |
| Pixels: | / |
| PCB Material: | Double side White FPC |
| Luminous Flux(lm): | 1800-2500mcd/led, 6-8lm/white led |
| CIR(Ra): | >80 |
| Voltage(V): | DC12V/24V |
| Watt(W): | 19.2W/meter |
| Driving method: | Constant Voltage |
| Beam angle(°): | 120 |
| Available Color: | RGBW(four chip, four color per led) |
| Color temperature (Kelvin): | 3000-3500K, 4000-4500K, 6000-6500K |
| IP Rank: | IP20, IP65, IP67, IP68 |
| Warranty: | 3 years |
| Lifespan(hrs): | 50000Hrs |
| Packaging: | 5 meter/reel |
| Way of installation: | 3M self-adhesive tape on the back |
| Sample lead time: | 3-5 days |
| Order lead time: | 5-7 days |
| Payment term: | T/T, Paypal, L/C, Western&Union |
Unique design 4 in 1 RGBW SMD5050 led strip ligth, with super bright led, super white 7-8lm for white color, 2200-2500MCD for RGB, when RGBW is on, the color is no pinkish, greenish and bluish. ideal for bar decoration, stage lighting, Christmas decoration, 30LEDs, 60LEDs, 72LEDs, 84LEDs, 96LEDs are available.
- RGBW color is on.
- Warm Color in on
- Red Color is on
- Green Color in on
- Blue Color is on

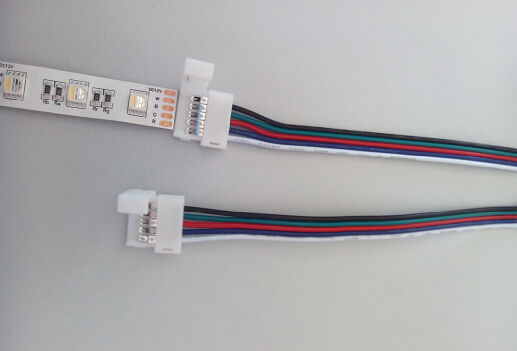

How to connect 4 In 1 5050 RGBW Flexible led strip light?
I. Cut along the light strip tape wherever a dashed line divides two sets of positive and RGBW connection points.
II. Peel away a portion of the light strip adhesive backing at one end. With the solderless clamp open to create two pieces of led strip, slide the strip end all the way into the solderless clamp. Close the hinged clamp.
III. You could also use our 2.4GHz RGBW Multi zone controller to control the LED strip, it could be used to create different color and adjust brightness.
| Product Name | IP Rank | Reel/CTN | CTN Size(cm) | N.W./Reel | G.W./CTN |
|---|---|---|---|---|---|
| 5050 flexible led strip, 30leds/meter | IP20 | 40 Reels | 52*24.5*27cm | 0.13kg | 5.7kg |
| 5050 flexible led strip, 30leds/meter | IP65 | 40 Reels | 52*24.5*27cm | 0.23kg | 9.7kg |
| 5050 flexible led strip, 30leds/meter | IP67 | 40 Reels | 52*24.5*27cm | 0.34kg | 14.1kg |
| 5050 flexible led strip, 30leds/meter | IP68 | 40 Reels | 52*24.5*27cm | 0.40kg | 16.5kg |
| 5050 flexible led strip, 60leds/meter | IP20 | 40 Reels | 52*24.5*27cm | 0.14kg | 6.1kg |
| 5050 flexible led strip, 60leds/meter | IP65 | 40 Reels | 52*24.5*27cm | 0.25kg | 10.5kg |
| 5050 flexible led strip, 60leds/meter | IP67 | 40 Reels | 52*24.5*27cm | 0.36kg | 15.0kg |
| 5050 flexible led strip, 60leds/meter | IP68 | 40 Reels | 52*24.5*27cm | 0.43kg | 17.7kg |
| Blister package 5050 flexible led strip, 30leds/meter | IP20 | 12 Sets | 45*21*32.5cm | 0.48kg | 6.3kg |
| Blister package 5050 flexible led strip, 30leds/meter | IP65 | 12 Sets | 45*21*32.5cm | 0.57kg | 7.3kg |
| Blister package 5050 flexible led strip, 60leds/meter | IP20 | 12 Sets | 45*21*32.5cm | 0.50kg | 6.5kg |
| Blister package 5050 flexible led strip, 60leds/meter | IP65 | 12 Sets | 45*21*32.5cm | 0.59kg | 7.6kg |
