SMD3528 240leds/meter flexible led strip

Ideal for interior decoration, LED flexible strip is thin, highly bright and perfect for interior decoration. These LED lights are fixed on a ribbon that makes it easy to use. Just attach it with power supply and it will add vibrant colors to your place, making it simply amazing.

Copper Finish SMD LED 3528 Flexible Strip Light comes as a reel of linear LED lights mounted on a flexible strip of printed circuit board (PCB) with a strong adhesive backing. Sometimes referred to as “LED tape lights,” the flexible design of LED strips means the lights can be installed in basically any space you can imagine. The fact that the flexible PCB can be bent up to 90 degrees and cut every 3 LEDs or 6 LEDs, makes it a very versatile and customizable solution for adding blue lighting wherever you need it.

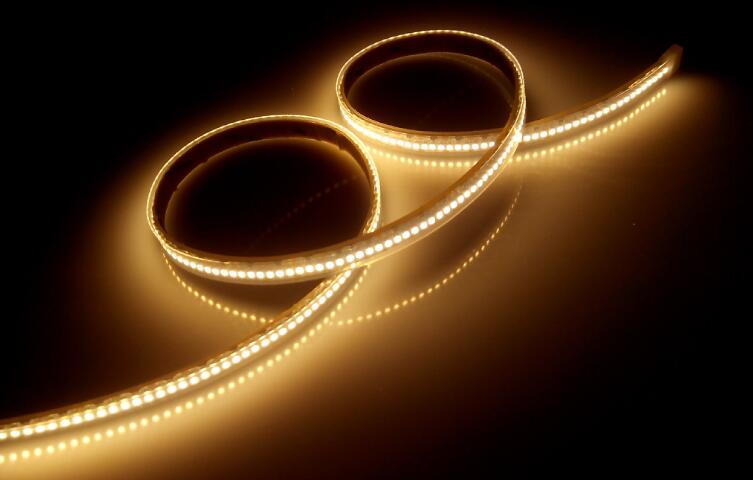

There are two types of 240 leds strip light, single row and double row. It’s single color, 12mm width PCB, 240 pcs SMD3528 led per meter. DC12V and 24V are available.

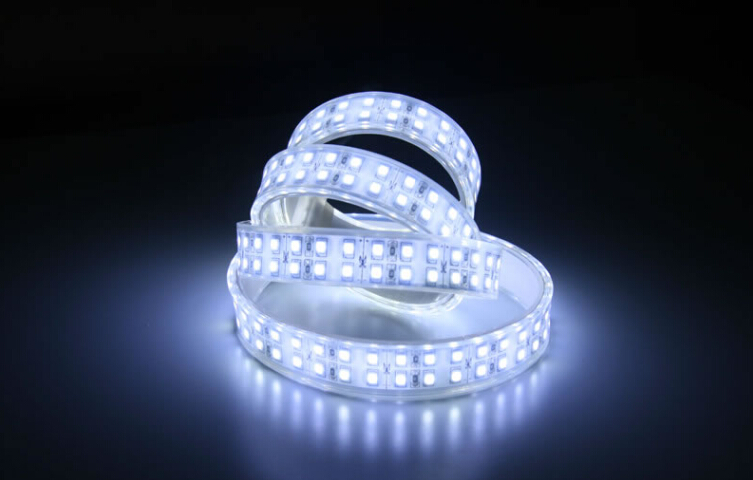

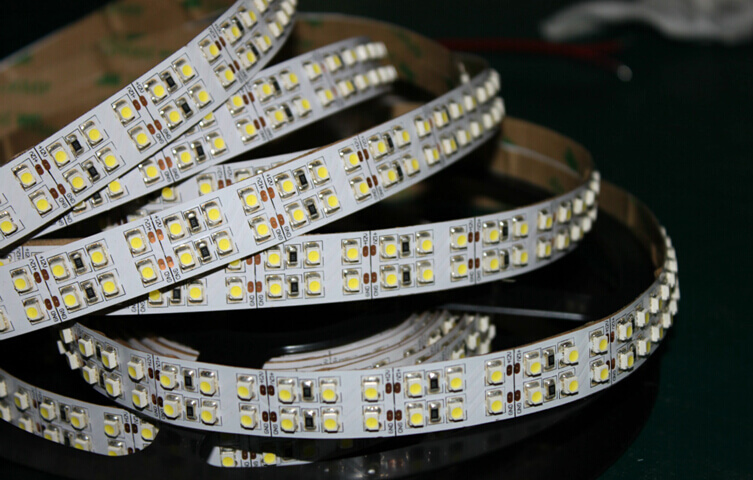

It’s double row led strip light, 15 width PCB, 120 pcs SMD3528 led per row, total 240 pcs led per meter. DC12V and 24V are available.

Connection Mode For Flexible LED Strip Light

– Simple Connection Steps

LED Light Strips offer an easy and highly effective way to provide the utmost in efficient, attractive accent lighting in a variety of settings and applications. Here is how LED Light Strips can be readied for mounting in three easy steps:

I.  Cut along the light strip tape wherever a dashed line divides two sets of positive and negative connection points.

II.  Peel away a portion of the light strip adhesive backing at one end. With the solderless clamp open, slide the strip end all the way into the solderless clamp. Close the hinged clamp.

III.  Remove the remaining adhesive backing and attach the light strip to the desired surface.

– Connection, Switch and Powering options

The information and illustrations below offer recommendations for choosing a general design for your application.

I.   Light strip On/Off is controlled by a wall mounted switch

II.  Light strip On/Off/Brightness is controlled by an LED dimmer

III.  Light strip On/Off/Brightness is controlled by an LED dimmer

IV.  Light strip On/Off/Brightness is controlled by 4 a wireless LED dimmer and signal receiver.   V.  Light strip is powered directly by a 12V battery, for applications like boats, RVs, etc.
