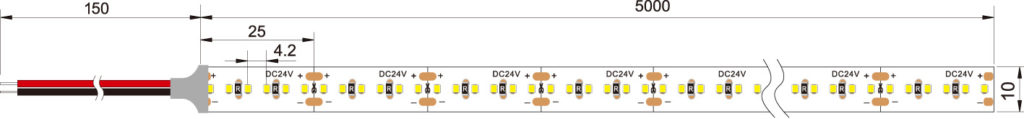

SMD2216 420leds/meter strip light

Ideal for interior decoration, LED flexible strip is thin, highly bright and perfect for interior decoration. These LED lights are fixed on a flexible FPC that makes it easy to use. Just attach it with power supply and it will add vibrant colors to your place, making it simply amazing.

Copper Finish SMD LED 2216 Flexible Strip Light comes as a reel of linear LED lights mounted on a flexible strip of printed circuit board (PCB) with a strong 3M adhesive backing. Sometimes referred to as “LED tape lights,” the flexible design of LED strips means the lights can be installed in basically any space you can imagine. The fact that the flexible PCB can be bent up to 90 degrees and cut every 3 LEDs or 6 LEDs, makes it a very versatile and customizable solution for adding blue lighting wherever you need it.

Why choose CRI>90Ra 2216 led strip tape?

• 2216 is Newest SMD led component with heat dissipation pad
• Slim size for led, 2.2mm(L)X1.6mm(W)
• Narrow 5mm width PCB are avaiable, ideal for cabinet and furniture
• Has very nice effect of Color Rendering Index, and CRI90, CRI95-97 2216 led tape is very competitive comparing with CRI90 3528 and 2835 Led
• Has very nice Uniformity, and high light efficiency
• 2300K more warm white color are available
• High density led, can not see the led point in the aluminum profile
• 60 LEDs, 120 LEDs, 240 LEDs, 280 LEDs, 300 LEDs, 420 LEDs per meter and CCT 2216 are available

Simple Connection Steps

LED Light Strips offer an easy and highly effective way to provide the utmost in efficient, attractive accent lighting in a variety of settings and applications. Here is how LED Light Strips can be readied for mounting in three easy steps:

I. Cut along the light strip tape wherever a dashed line divides two sets of positive and negative connection points.

II. Peel away a portion of the light strip adhesive backing at one end. With the solderless clamp open, slide the strip end all the way into the solderless clamp. Close the hinged clamp.

III. Remove the remaining adhesive backing and attach the light strip to the desired surface.

Connection, Switch and Powering options

The information and illustrations below offer recommendations for choosing a general design for your application.

I. Light strip On/Off is controlled by a wall mounted switch

II. Light strip On/Off/Brightness is controlled by an LED dimmer

III. Light strip On/Off/Brightness is controlled by an LED dimmer

IV. Light strip On/Off/Brightness is controlled by 4 a wireless LED dimmer and signal receiver. V. Light strip is powered directly by a 12V battery, for applications like boats, RVs, etc.
