Product Features
- It is made of Dow Chemical SILASTIC™ ET-7021 silicone rubber, which provides high transparency and high strength, environmental protection grade silicone material;
- It’s integrated extrusion molding process, uniform lighting surface and no shadow; IP67 and IP68 protection level, salt solution resistance, acids & alkalis and UV resistance;
- 3 & 5 years warranty are available, Surface frosting process is optional.
- Unique optical light distribution structure design, 360° emitting uniform without shadow
- Ambient temperature: -25℃~60℃; Storage temperature: 0℃~60℃.
| Spec. | Description |
|---|---|

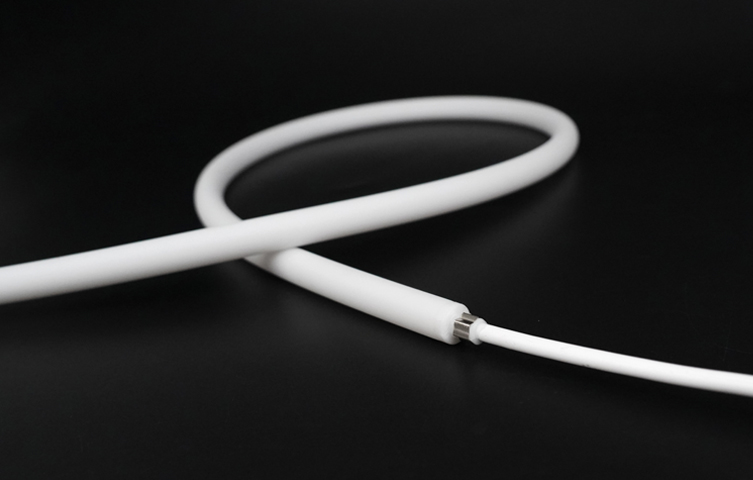

| Product Name: | R13 360° EMITTING SILICONE NEON STRIP |
| Item No.: | TY-NR13PROV24Px-Cx |
| Size(mm): | R13mm |
| LED Type: | SMD2835 LED Chip |
| LED QTY(pcs): | 120LEDs/meter |
| IC Type: | / |
| IC QTY(pcs): | / |
| Pixels: | / |
| PCB Material: | 2OZ copper FPC |
| Luminous Flux(lm): | 24-26lm/led |
| CIR(Ra): | >90Ra |
| Voltage(V): | DC24V |
| Watt(W): | 5W |
| Driving method: | Constant Voltage & Constant Current |
| Beam angle(°): | 120 |
| Available Color: | WW/NW/CW/Red/Yellow/Blue/Green/Ice Blue/Pink/Orange |
| Color temperature (Kelvin): | 2100K/2400K/2700K/3000K/3500K/4000K/5000K/6000K |
| IP Rank: | IP67 |
| Warranty: | 3 years and 5 years are availible |
| Lifespan(hrs): | 50000Hrs |
| Packaging: | 5 meters, 10 meters, 15 meters, 20 meters, 30 meters/reel |
| Way of installation: | Stainless steel Mounting clips, Aluminium profile, Cured Metal profile |
| Sample lead time: | 5-7 days |
| Order lead time: | 10-15 days |
| Payment term: | T/T, Paypal, L/C, Western&Union |
DOWNLOAD TY-NR13V24Px-Cx-ver.2.0
Product Features
- It is made of Dow Chemical SILASTIC™ ET-7021 silicone rubber, which provides high transparency and high strength, environmental protection grade silicone material;
- It’s integrated extrusion molding process, uniform lighting surface and no shadow; IP67 and IP68 protection level, salt solution resistance, acids & alkalis and UV resistance;
- 3 & 5 years warranty are available, Surface frosting process is optional.
- Unique optical light distribution structure design, 360° emitting uniform without shadow
- Ambient temperature: -25℃~60℃; Storage temperature: 0℃~60℃.
| Product Name | IP Rank | Reel/CTN | CTN Size(cm) | N.W./Reel | G.W./CTN |
|---|---|---|---|---|---|
| 3528 flexible led strip, 30leds/meter | IP20 | 50 Reels | 52*24.5*27cm | 0.10kg | 5.8kg |
| 3528 flexible led strip, 30leds/meter | IP65 | 50 Reels | 52*24.5*27cm | 0.22kg | 10.0kg |
| 3528 flexible led strip, 60leds/meter | IP20 | 50 Reels | 52*24.5*27cm | 0.19kg | 6.0kg |
| 3528 flexible led strip, 60leds/meter | IP65 | 50 Reels | 52*24.5*27cm | 0.22kg | 11.5kg |
| 3528 flexible led strip, 60leds/meter | IP67 | 40 Reels | 52*24.5*27cm | 0.24kg | 10.1kg |
| 3528 flexible led strip, 120leds/meter | IP20 | 50 Reels | 52*24.5*27cm | 0.15kg | 8.0kg |
| 3528 flexible led strip, 120leds/meter | IP65 | 50 Reels | 52*24.5*27cm | 0.27kg | 14.0kg |
| 3528 flexible led strip, 120leds/meter | IP67 | 40 Reels | 52*24.5*27cm | 0.29kg | 12.1kg |
| 3528 flexible led strip, 120leds/meter | IP68 | 40 Reels | 52*24.5*27cm | 0.35kg | 14.5kg |
